FCA | Self-cleaning cartridge filter

Self-cleaning cartridge filters are another dry air filtration system for any kind of dust.

They can reach a filtration efficiency of over 99% and can treat dust with an average particle size of up to fine dust (0.20 - 0.25 µm). Under certain working conditions they can be an excellent alternative to bag filters.


Montes cartridge filters

The cartridge filter we build are equipped with a compressed air or mechanical shaking self-cleaning system, control panel and inspection hatches for cartridge maintenance. There are manifold techniques for collecting and conveying the filtered dust: rotary valves, augers, conveyor belts, pneumatic conveying, etc.

They are generally used to exploit their larger filtering surface area, which is about 10 times larger than bag filters of the same size. Their dedusting action is particularly efficient on types of dust that do not tend to compact, are not hygroscopic and have gas temperatures below 80°C.

Each filter is dimensioned according to the system specifications and can be ATEX-certified for particular uses, i.e., where explosive environments are created.

The advantages of the self-cleaning cartridge filter are:
  • Easy use
  • Low maintenance requirements
  • Compact size

Dust abatement with grain size > 0.5 µm

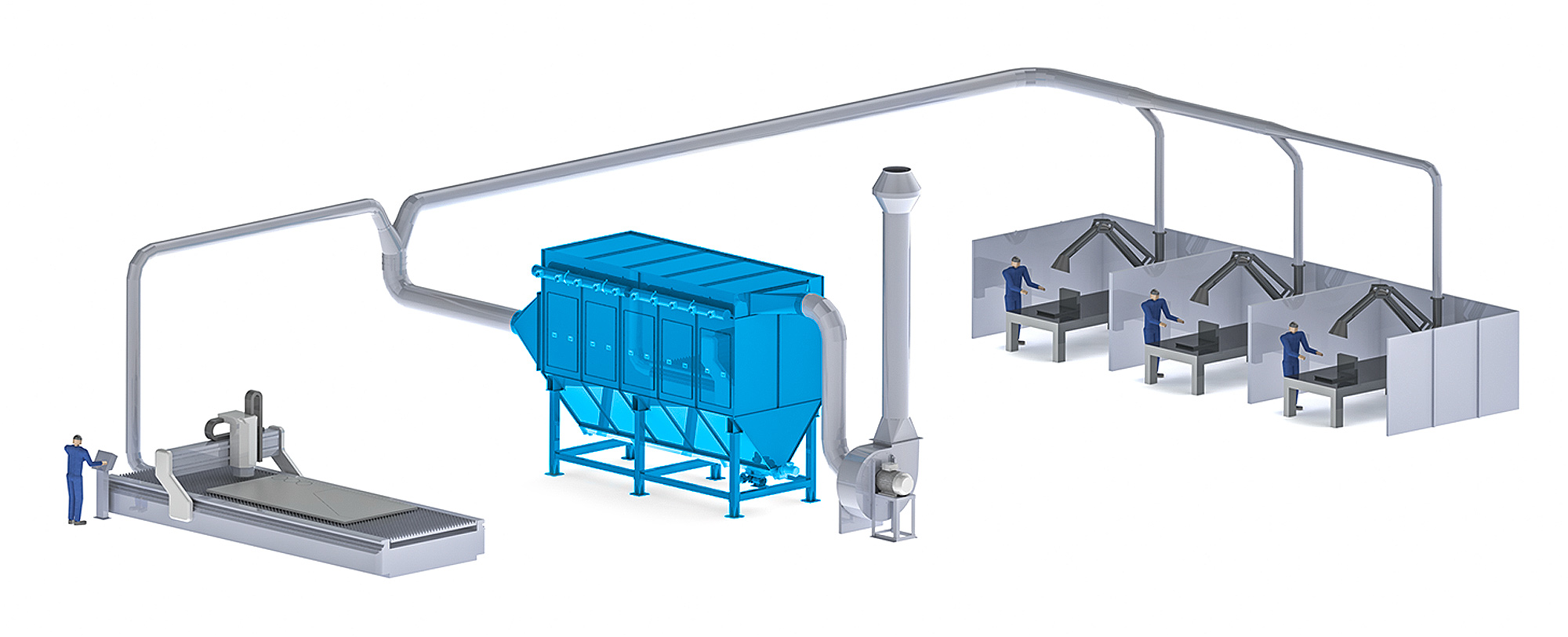

Dust filtration for sanding, smoothing, shot blasting, polishing, sifting, oxygen flame cutting, laser cutting, plasma cutting, painting processes.

  • Powder coated or hot-dip galvanised steel sheet metal structure
  • Support legs in powder coated or hot-dip galvanised steel profiles
  • Automatic compressed air cleaning system on cartridges
  • Inspection portals for cartridge maintenance
  • Dust discharge system through cyclone with rotary valve or only collection bin
  • Command panel
  • Connection fittings between the filter and suction system
  • Equipment in AISI 304 / AISI 316 stainless steel
  • ATEX / Antistatic version
  • Customized construction for flow rates and applications not specified in the data sheet

Datasheet

Download the pdf file with the features of the product

Download

Would you like more information about our products or services?

Our Works

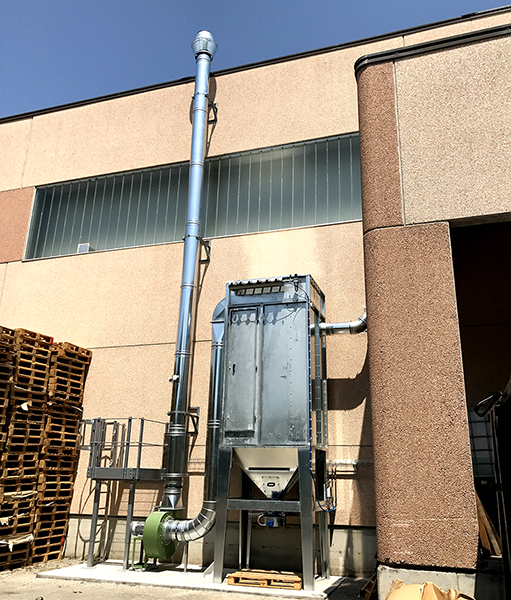

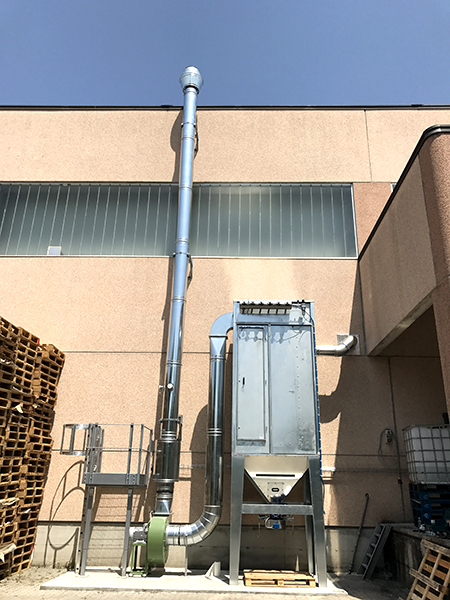

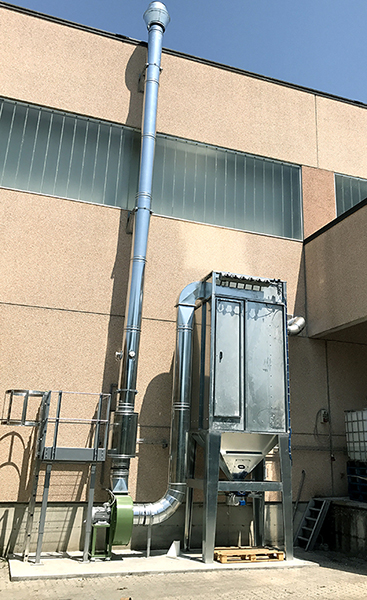

  • Self-cleaning cartridge deduster
    for sugar dust suction system

    Italy | Piemonte
    Air flow 1,1 m³/s
    Power 4 kW
    -

  • FCA self-cleaning cartridge
    deduster for expanded silica dust

    Italy | Abruzzo
    Connection to scrubber
    Air flow 0,5 m³/s
    -

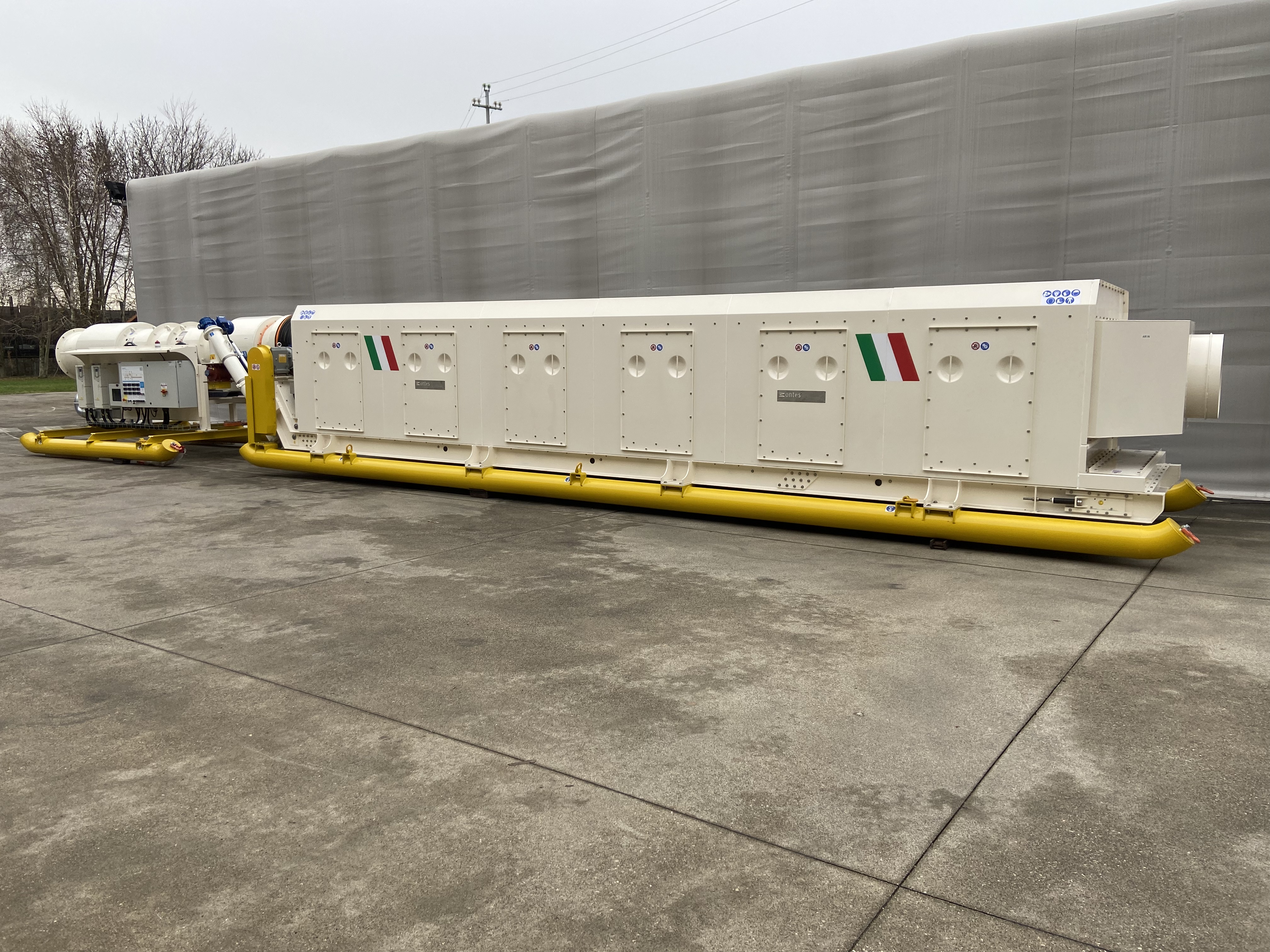

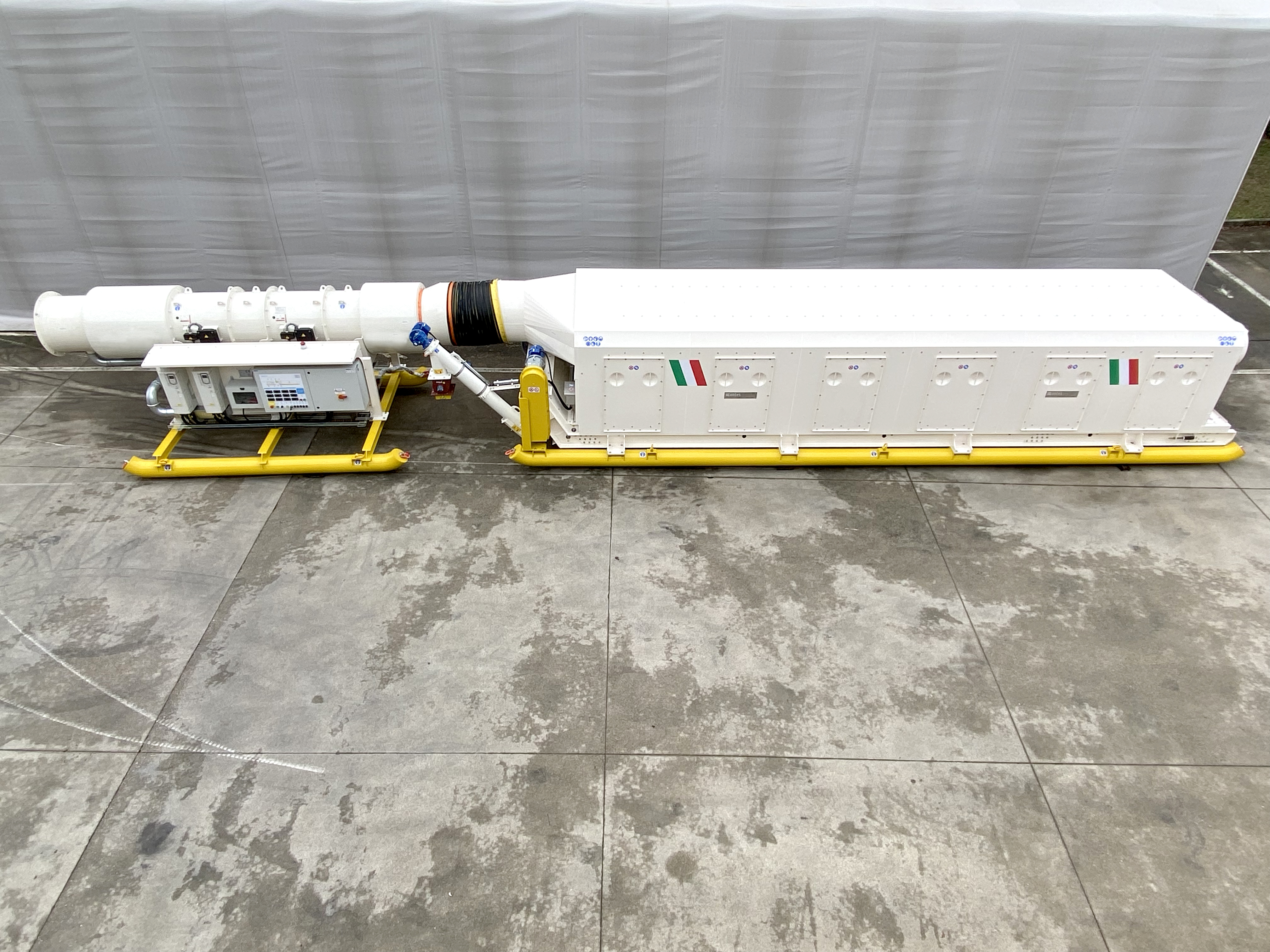

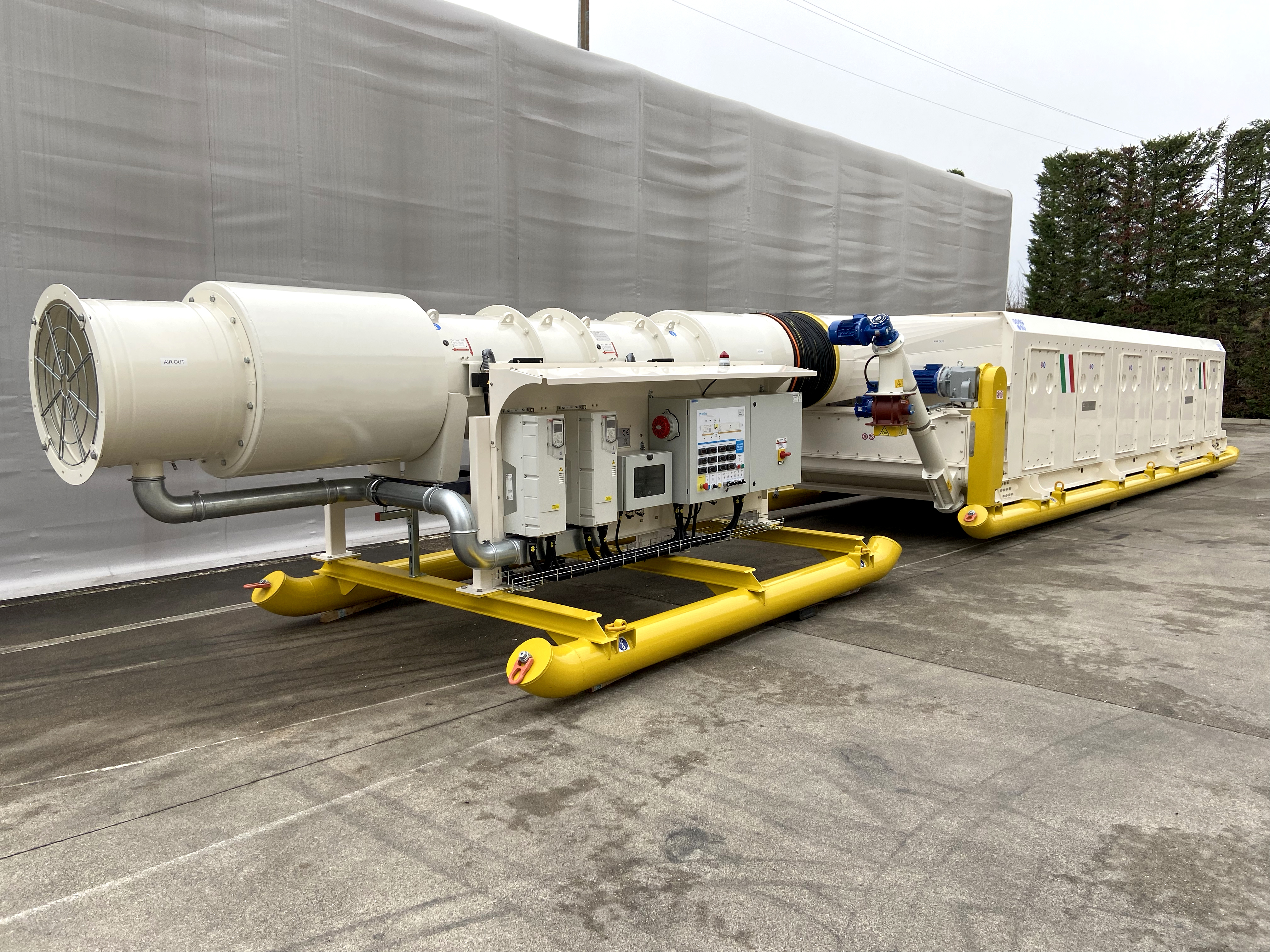

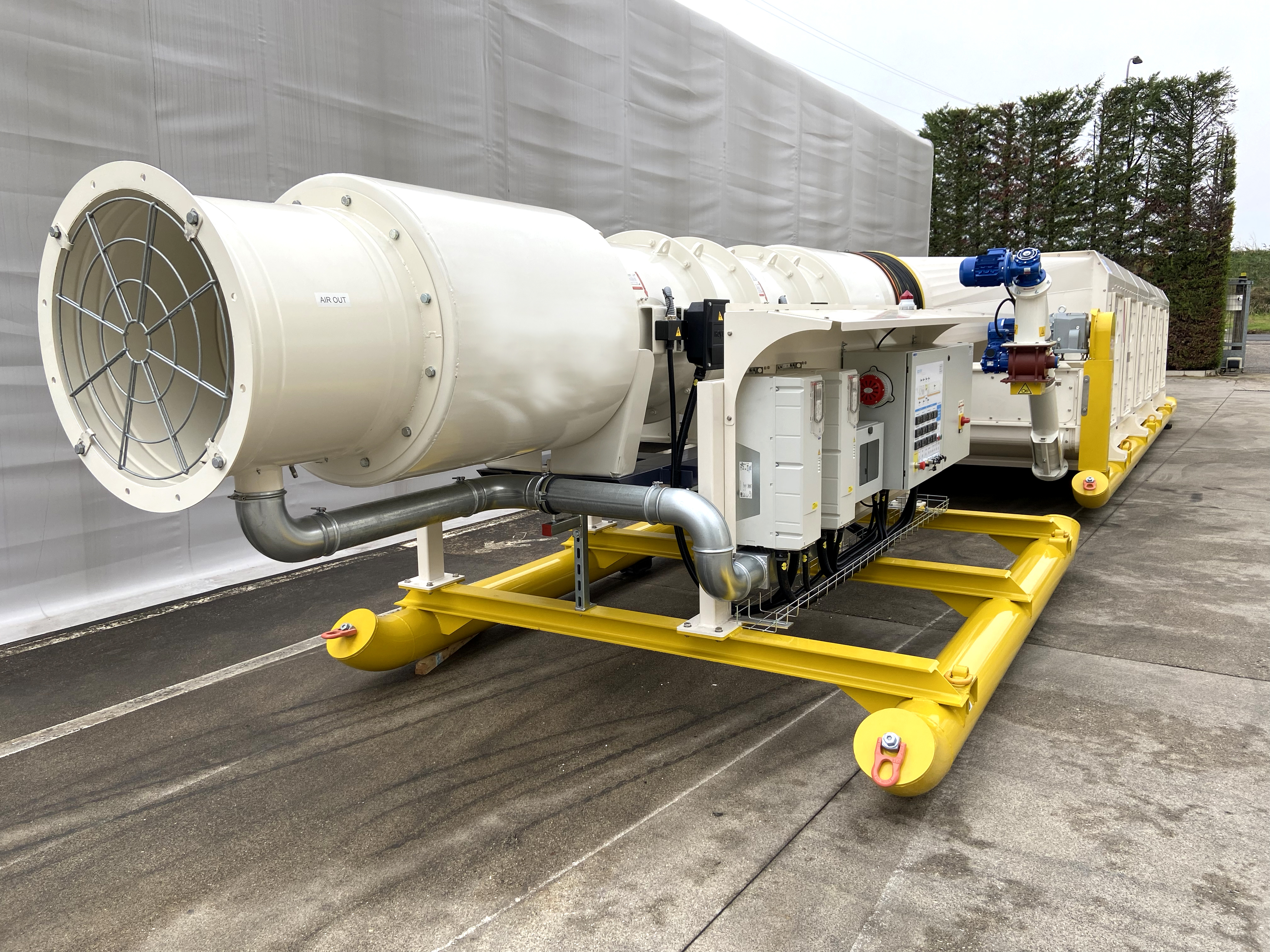

  • FCA self-cleaning cartridge deduster
    for railway wagon cleaning system

    Saudi Arabia
    Air flow 2,5 m³/s
    Size 1.000 x 1.300 x 2.900 mm
    Stainless steel body

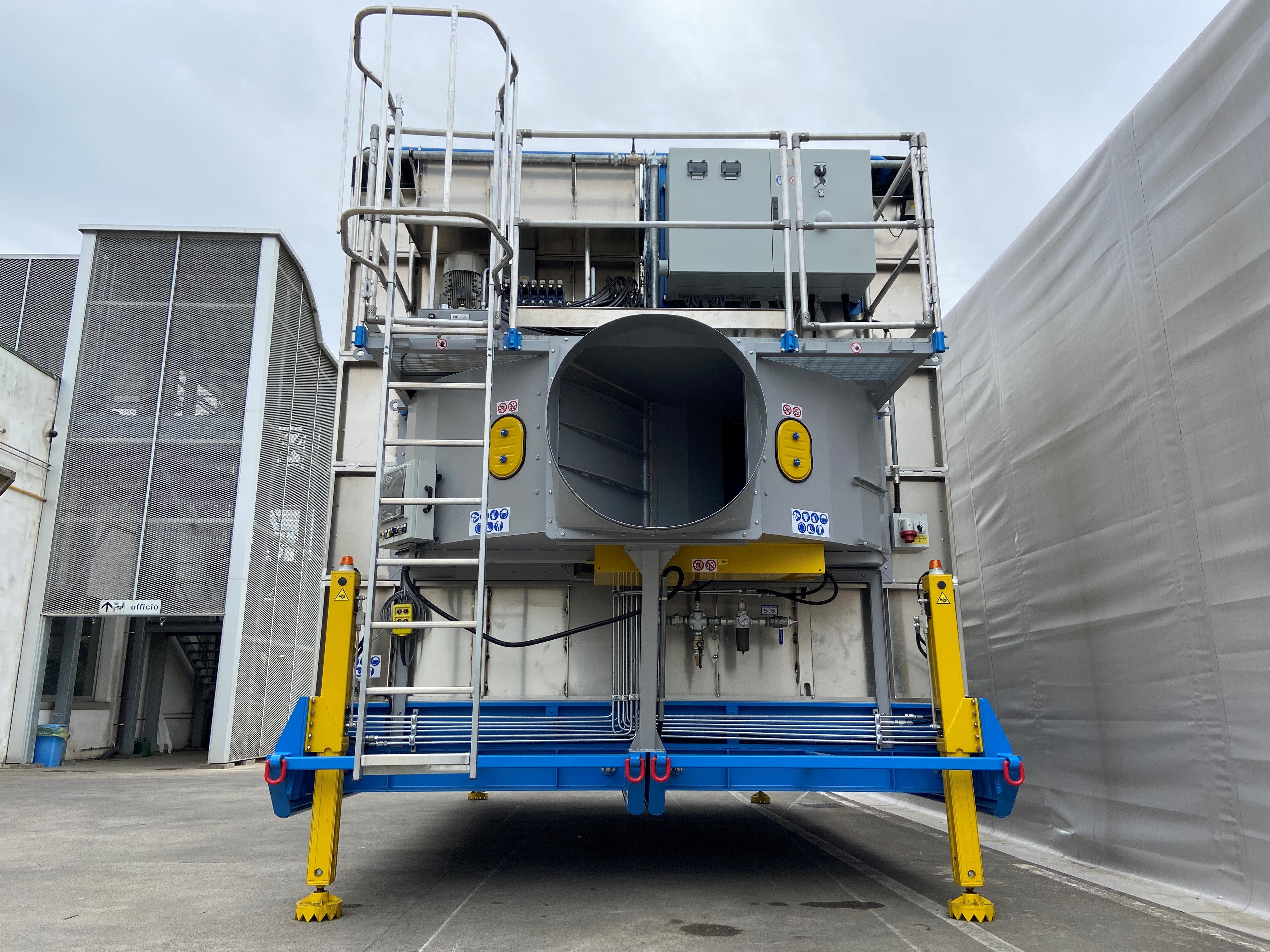

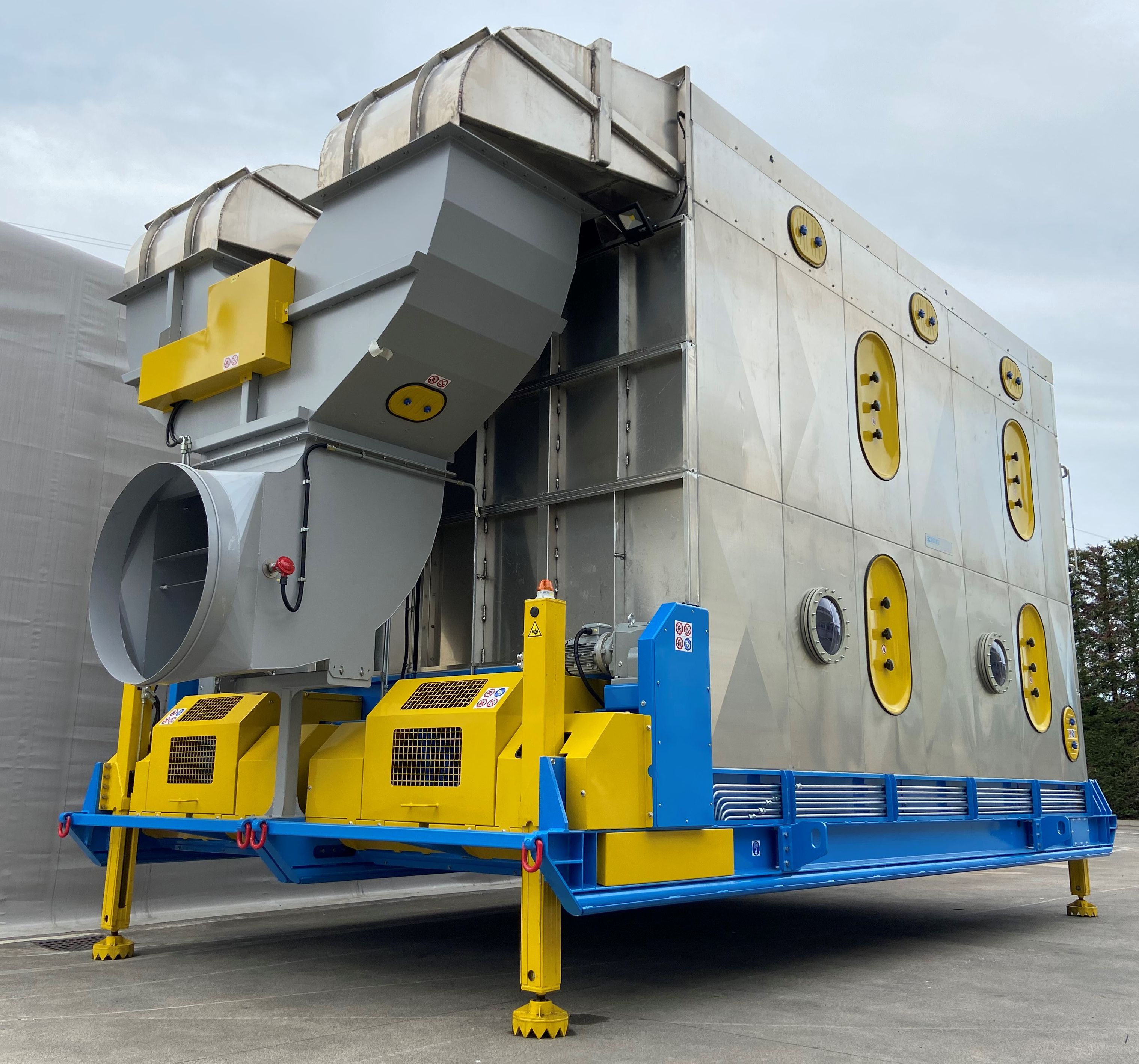

  • FCA self-cleaning cartridge deduster
    for railway wagon cleaning system

    Italy | Lombardia
    Air flow 5,5 m³/s
    Power 160 kW
    -
