FMA | Self-cleaning bag filter

The self-cleaning bag filter is a dry air filtration system that can be used for all types of dust.

It has a wide range of uses, as it is able to exert its filtering action without particular pressure drops on dust particles with granulometry not lower than 2 µm and with a high filtration efficiency if properly dimensioned (over 95%).


Montes bag filters

Our bag filters are designed and built according to the specific needs of our systems and are made for continuous work, 24 hours a day, 7 days a week, 365 days a year, with automatic bags cleaning system with compressed air jets.

Depending on requirements, bags can be made with special fabrics to work at high temperatures and the filter can be ATEX-certified for explosive dust.

A control panel allows regulating the washing cycle and managing the system.

There are manifold techniques for collecting and conveying the filtered dust: rotary valves, augers, conveyor belts, pneumatic conveying, etc.

Bag filters are built with structural solutions that ensure easy and customisable maintenance according to the needs of our customers.

The advantages of the self-cleaning bag filter are:
  • Simple operating principle
  • Low maintenance requirements
  • Reduced operating costs
Dust abatement with grain size > 2 µm
Dust filtration for sanding, smoothing, shot blasting, polishing, sifting, painting processes.
  • Powder coated or hot-dip galvanised steel sheet metal structure
  • Support legs in powder coated or hot-dip galvanised steel profiles
  • Automatic compressed air cleaning system on bags
  • Ladder, platform and railing for maintenance on bag filters
  • Dust discharge system through cyclone with rotary valve or only collection bin
  • Control panel
  • Connection fittings between the filter and suction system
  • Equipment in AISI 304 / AISI 316 stainless steel
  • ATEX / Antistatic version
  • Customized construction for flow rates and applications not specified in the data sheet

Datasheet

Download the pdf file with the features of the product

Download

Would you like more information about our products or services?

Our Works

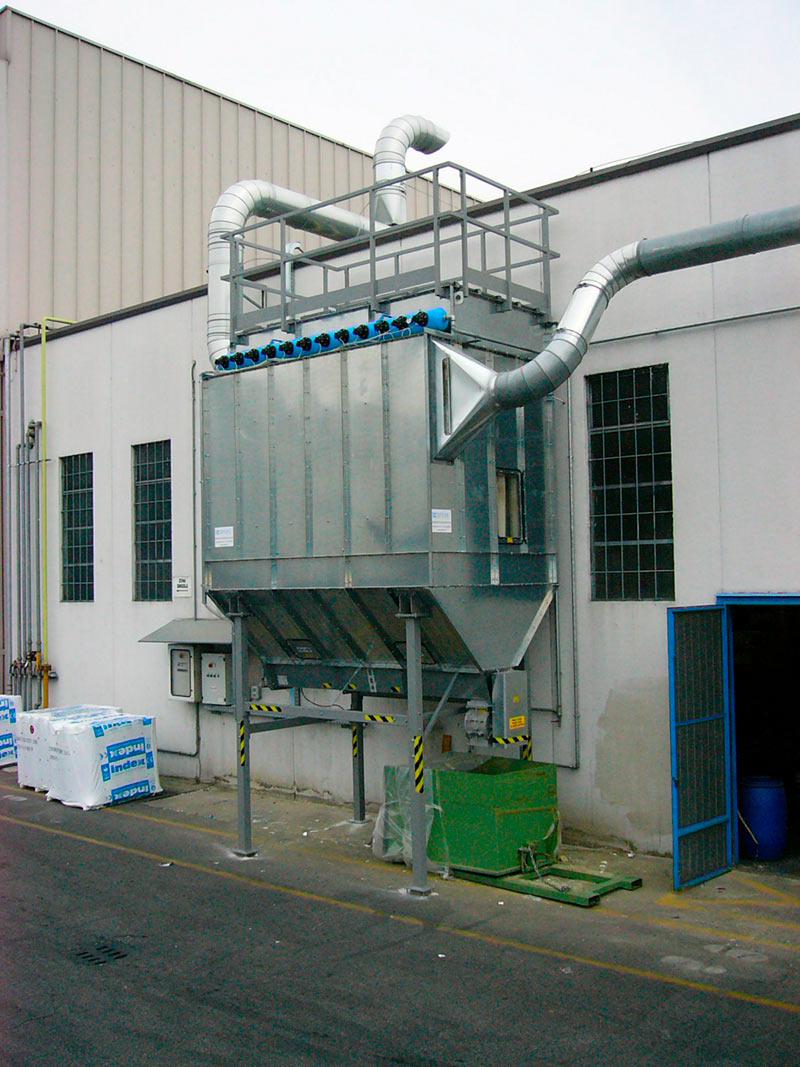

  • FMA self-cleaning bag deduster
    for sugar dust

    Italy | Piemonte
    Air flow 1,40 Nm³/s
    ATEX certification
    -

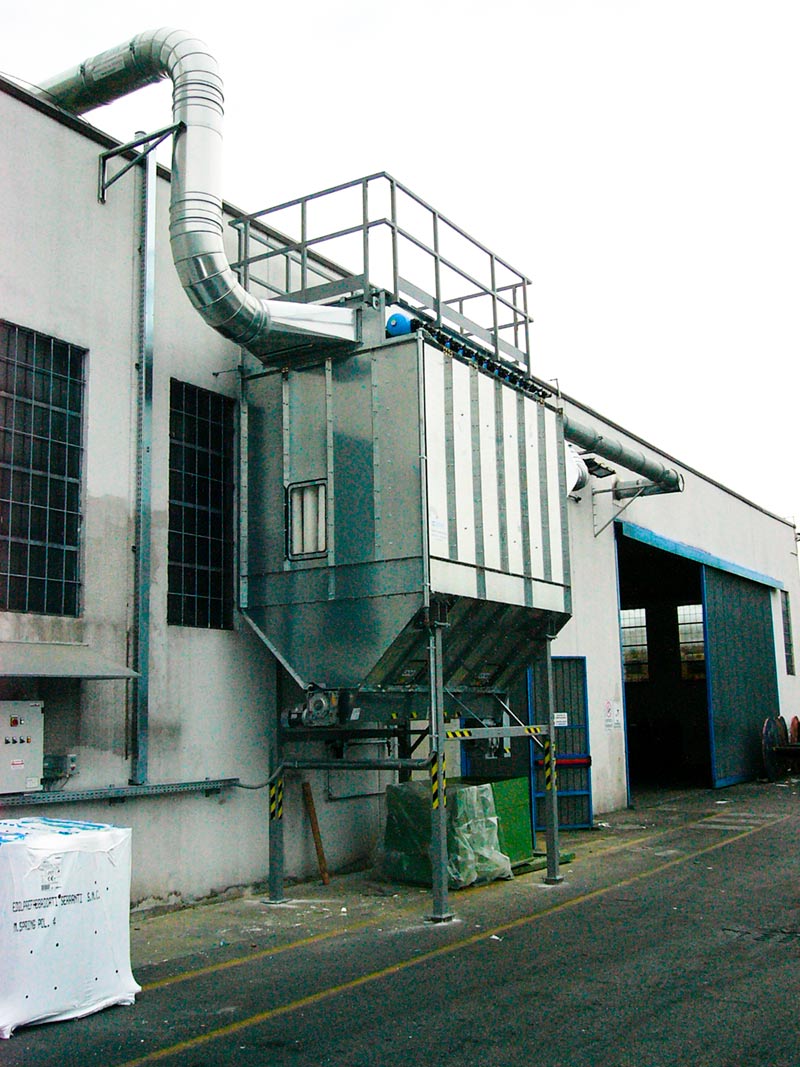

  • FMA self-cleaning bag dust collector for
    leather shaving dust

    Italy | Veneto
    Stainless steel body
    Air flow 4,2 Nm³/s
    Power 37 kW

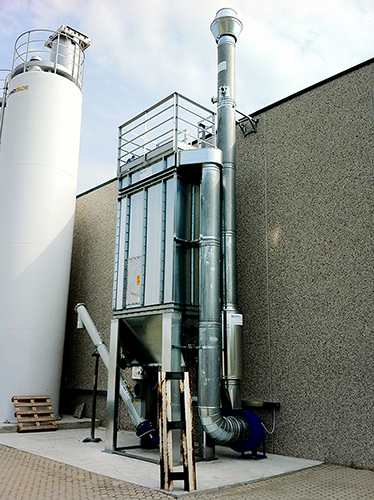

  • FMA self-cleaning bag dust collector
    for rock wool dust

    Italy | Veneto
    -
    -
    -

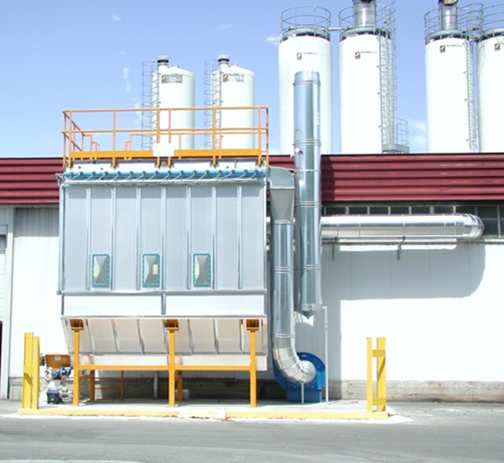

  • Insulated FMA self-cleaning bag deduster
    for sugar dust

    Italy | Piemonte
    Air flow 4 Nm³/s
    Power 35 kW
    ATEX II-2D certification

  • FMA self-cleaning bag dust collector
    for straw dust

    Italy | Veneto
    Air flow 2 Nm³/s
    Power 15 kW
    -

  • FMA self-cleaning bag dust collector
    for metal grinding dust

    Italy | Veneto
    Air flow ,15 Nm³/s
    -
    -
